| • | No COM or LPT port necessary, just one USB port for audio and Control |

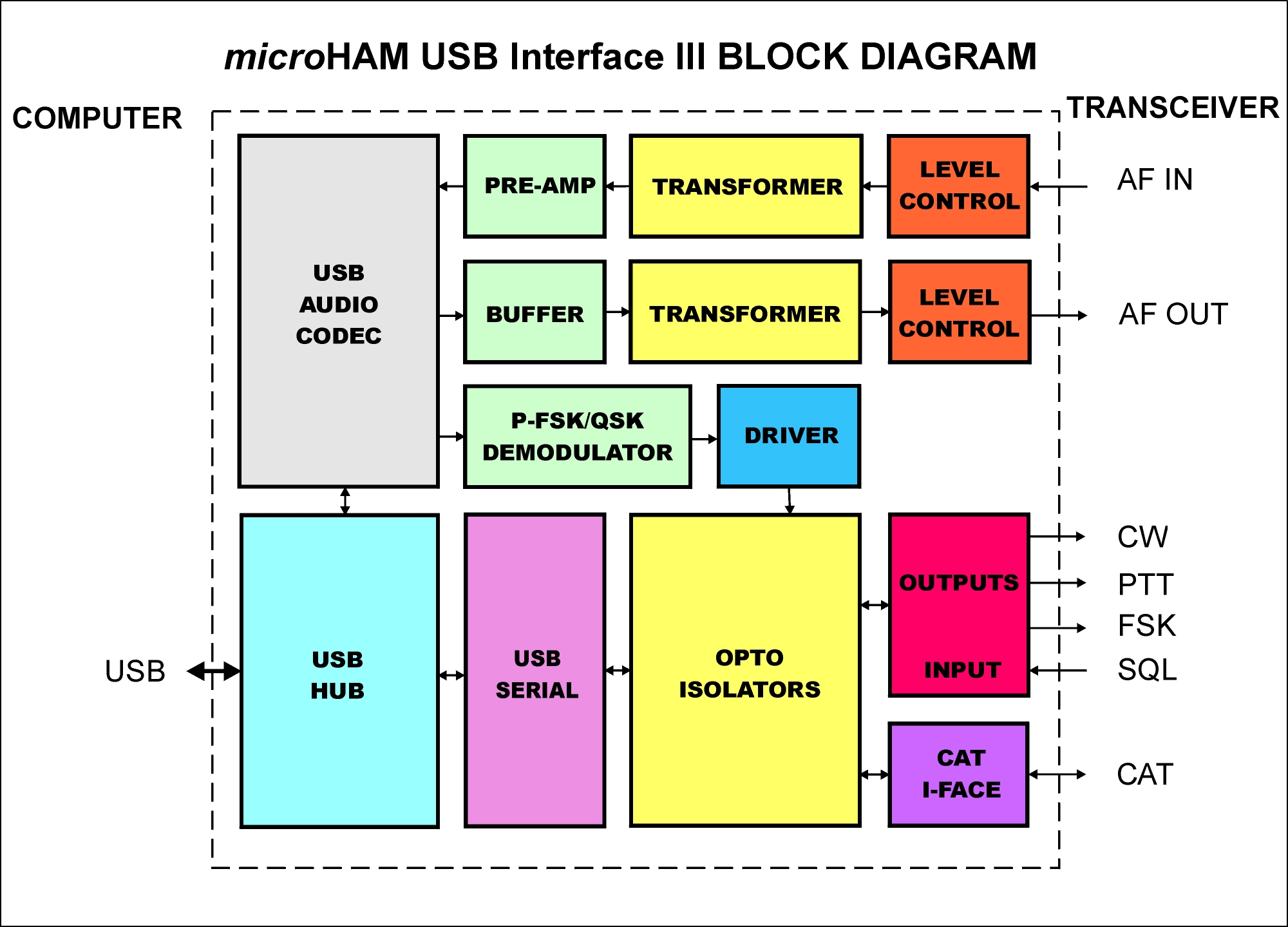

| • | Complete "Computer <-> Radio" electrical isolation - bidirectional transformer isolation between sound card and radio - ALL digital signals: Radio Control, CW, PTT, FSK, and Squelch, optically isolated from USB port |
| • |
Standard Sound Device - no custom drivers: The USB Sound Device is an industry standard device recognized by Windows, Macintosh OS 10 and LINUX. There are no custom device drivers to install and no compatibility problems with your applications. |
| • |
Ultra low noise: - The sound circuits are designed with special attention to low noise - Receive noise floor is better than -90 dBm (typical) in 600 Ohms. - 87 dB (typical) dynamic range rivals that of professional products. - Special circuit design maintains full dynamic range and low noise floor with all radios - both high level and low level outputs. |
| • |
Independent transmit and receive clock
- Transmit clock: 32000, 44100, 48000 Hz - Receive clock: 8000, 11025, 16000, 22050, 32000, 44100, 48000 Hz - sampling rates are native: no up/down conversion or "rounding" errors |
| • | Right
channel audio detector and FSK/CW driver
- FSK output for FDIGI "pseudo-FSK" mode - Provides a "hard keyed" CW output for software that generates only audio (sidetone) CW |
| • | Support
for all radio control standards (CI-V, FIF-232, IF-232, RS-232) - fully supports Icom, Kenwood, Ten Tec, Yaesu and other radios - no separate level converter required |
| • | Squelch input for signaling to computer - two inputs, one is active low, second is active high - ideal for Echolink and remote interfacing applications |
| • | No external power adapter
for most transceivers - Computer part is powered from USB - Radio interface is powered from transceiver or transceiver power supply |
| • | Strong immunity to RFI - integrated chokes and filters for best RFI immunity - advanced shielding and circuit design for RFI product suppression |
| • | Quick change connectors - USB - Radio - DB15 |

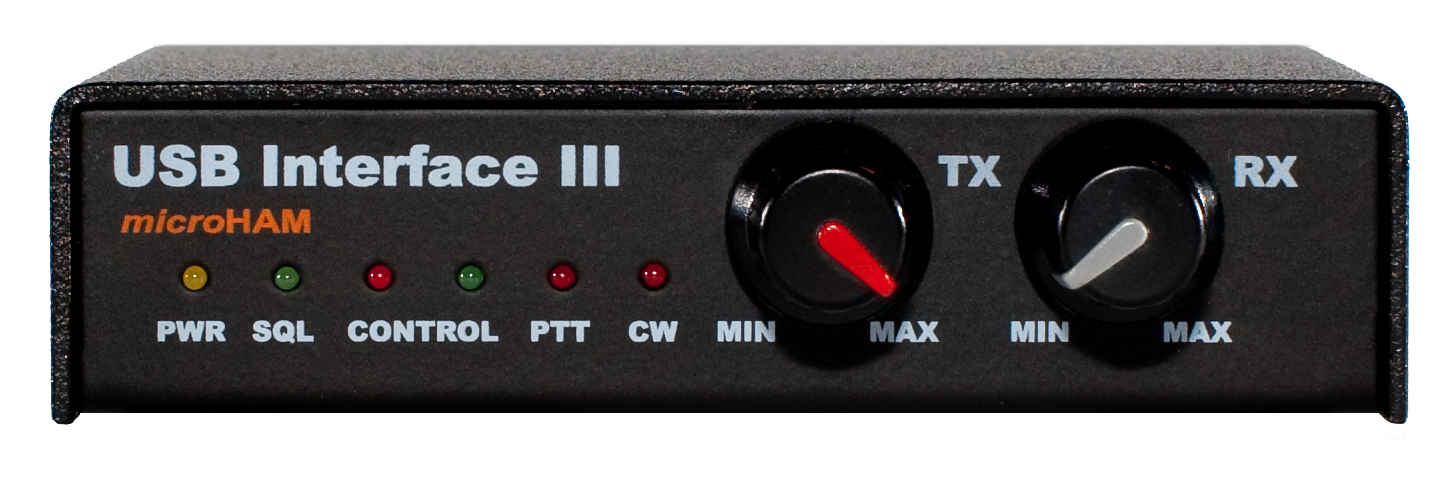

| • | LEDs for easy visual feedback of CAT, CW, PTT, SQL |
| • | Metal/Aluminum case, powder coated and silk screened |
| • | Free software upgrades via the internet |
