Accessories

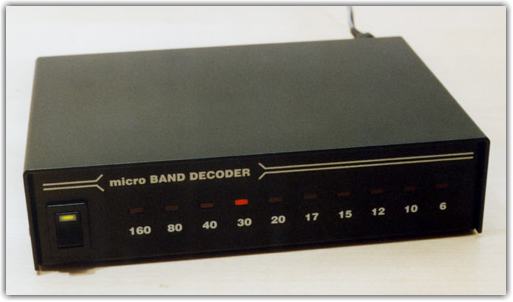

micro Band Decoder

Radio cables:
IC1 serial (TTL) data transfer between microBand Decoder� and ICOM or TenTec transceivers with CI-V port $15
TS1 serial data transfer between microBand Decoder� and KENWOOD TS-450, TS-690, TS-850, and TS-950 $39
FT1 parallel band data from YAESU transceivers with DIN-8/262 connector: FT-840, FT-900, FT-920, FT-990, FT-1000, FT-1000D, FT-1000MP, FT-1000MP Mark V, FT-1000MP Mark V Field, FT-2000 and FT-9000 $39
FT2  parallel band data from YAESU transceivers with mini DIN-8 CAT/LINEAR connector: FT-100, FT-100D, FT-817, FT-857, FT-897 $45
FT3 serial data transfer between microBand Decoder� and YAESU transceivers with mini DIN-8 CAT/LINEAR connector: FT-100, FT-100D, FT-817, FT-857, FT-897 $29
FT4 serial data transfer between microBand Decoder� and YAESU transceivers with DIN6 CAT connector: FT-990, FT-1000, FT-1000D $29
FT5 serial data transfer between microBand Decoder� and YAESU transceivers with mini DIN-6 CAT connector: FT-840, FT-900 to the micro Band Decoder $29
PCCOM1 serial data transfer between microBand Decoder� and Ten-Tec Argonaut V, Jupiter, Pegasus, Orion, and Orion II  $19
RIG232 serial data transfer between microBand Decoder� and YAESU FT-450, FT-1000MP, FT-1000MP Mark V, FT-1000MP Mark V Field, FT-2000, FT-9000, KENWOOD TS-480, TS-570, TS-870, TS-2000, or ELECRAFT K3 $19
RIG232X crosswired (null modem) for serial data between microBand Decoder� and YAESU FT 847 or FlexRadio SDR-1000 and FLEX-5000 $19


Computer cables:
PCLPT1 parallel band data, CW and PTT signals from computer LPT port to microBand Decoder�.  L/R signal from LPT is routed to the DB25 band data output connector $39
PCCOM1 serial data transfer between computer and Band Decoder computer port $19


CW & PTT cables:
CWPTT1 CW and PTT signals from band decoder to the transceiver $19
IC2 adapter for connecting PTT from the CWPTT1 cable to the ACC2 connector on the Icom transceiver rear panel.  It allows use of the ACC2 connector for amplifier connection. You not need this adapter if your logging software supports PTT through serial (CAT) command. $39
TS2 adapter for connecting PTT from the CWPTT1 cable to the REMOTE connector on the Kenwood transceiver rear panel.  It allows use of the REMOTE connector for amplifier connection.   You not need this adapter if your logging software supports PTT via serial (CAT) command. $39


Antenna interfaces:
PASTEPR band data interface for SteppIR antenna controllers using Icom protocol  $55

Power Amplifier interfaces:
PAYAESU1 band data interface for the YAESU VL1000 (Quadra) and FL7000 amplifiers $55
PAICKL1 band data interface for the ICOM IC-2KL and IC-4KL amplifiers $89
PAICPW1 band data interface for the ICOM IC-PW1 amplifier  $55


Band Pass Filter interfaces:
BPF-419 interface for ICE-419/ICE-419A band pass filters and VL-1000 (Quadra), FL-7000, IC-PW1, or Multilink $89
BPF-M600 interface for Dunestar model 600 band pass filters and VL-1000 (Quadra), FL-7000, IC-PW1, or Multilink $89
BPF-FM6 interface for Array Solutions FM-6 matrix and VL-1000 (Quadra), FL-7000, IC-PW1, or Multilink $89


Relay Board:
RB Provides isolation between drive IC and outdoor switch installations.  Also permits driving remote switches by other manufacturers which require a connection to ground instead of switched +12. $70
